30C Fast Charge And 40C Discharge Rate 10Ah NCM Battery For Mild Hybrid Vehicle

Product Categories

Soundon New Energy Technology Co,.Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 30C Fast Charge And 40C Discharge Rate 10Ah NCM Battery For Mild Hybrid Vehicle
Brand: SOUNDON
Price: 1 USD

Brand Name : SOUNDON

Model Number : SEPNi60217127P--3.65V10Ah

Certification : ROHS,MSDS

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T or L/ C

Supply Ability : 20000pcs/day

Delivery Time : 25-30 days

Packaging Details : PVC case with inner ,carton box outside

Nominal Voltage : 3.65V

Nonimal capacity : 10Ah

max plus charging current : 30C (15℃～45℃)≤30S

max plus discharging current : 40C (15℃～45℃)≤30S

Max constant discharging current : 35C

Weight : 315g

Application : PHEV

Contact Now

30C Fast Charge And 40C Discharge Rate 10Ah NCM Battery For Mild-hybrid vehicle

Basic specification

Nominal Capacity	10Ah, 0.5C discharging(25±2℃)
Typical Capacity	10Ah, 0.5C discharging(25±2℃)
Nominal Voltage	3.65V
Charge Ending Voltage	4.1V
Discharge Ending Voltage	2.8V
Standard Charging Method	25±2℃, 1C constant current charge to 4.1V, then constant voltage 4.1V charge till charged current declines to ≤ 1C
Max. Constant Charging Current	20C (15℃～45℃)
Max. Pulse Charging Current	30C (15℃～45℃)≤10S
Standard Discharging Current	25±2℃, 1C constant current discharge to 2.8V
Max. Pulse Discharging Current	40C
Max constant discharging current	35C
Operating environment	Charging:-10℃~55℃, max.90%RH ；Discharging: -20℃~55℃, max.90%RH
Impedance	≤1.5mΩ
Cell Weight	315g

Test performance

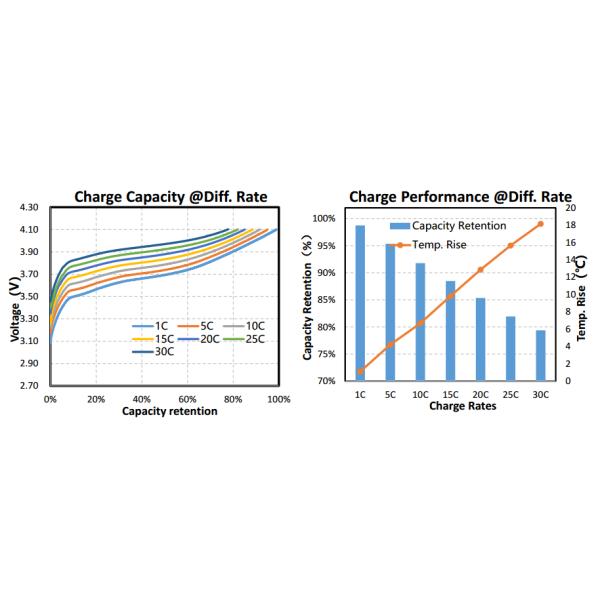

Charge and discharge power performance

30C Fast Charge And 40C Discharge Rate 10Ah NCM Battery For Mild Hybrid Vehicle

2. Charge performance

3.Discharge performance

30C Fast Charge And 40C Discharge Rate 10Ah NCM Battery For Mild Hybrid Vehicle
